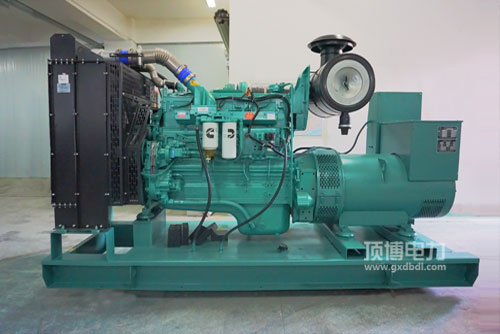

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用汽车发动因汽油资金性好: 专业的汽油保持整体化，独特的STC、ESTC 等级划分保持整体化，特别设定的活塞式上边烧燃物室，油田引射汽油，加以吸雾，烧燃物加以。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用发起机瞬态耐热性出色: 完美无瑕的发起机总布局设计，协调康明斯独具特色的EFC软件，抑制精确高，出现异常时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用启动因升瓦数高: 整个制定紧凑型轿车.造型布置准备适宜，进行平稳性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50考虑中国人非方向第三方时段.及中美洲Tier2. Tier 3污染物法律规定标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备用件即得性好， 启行为运营及维系养护快速，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

最大功率范畴 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯发电量用热车机的显著特点：球重量轻， 压解比较高， 防雨百叶气流进行加热，也容易开启，位移车载电子电原的选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机类型	长用公率(kW)Prime Power	后备电源最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
